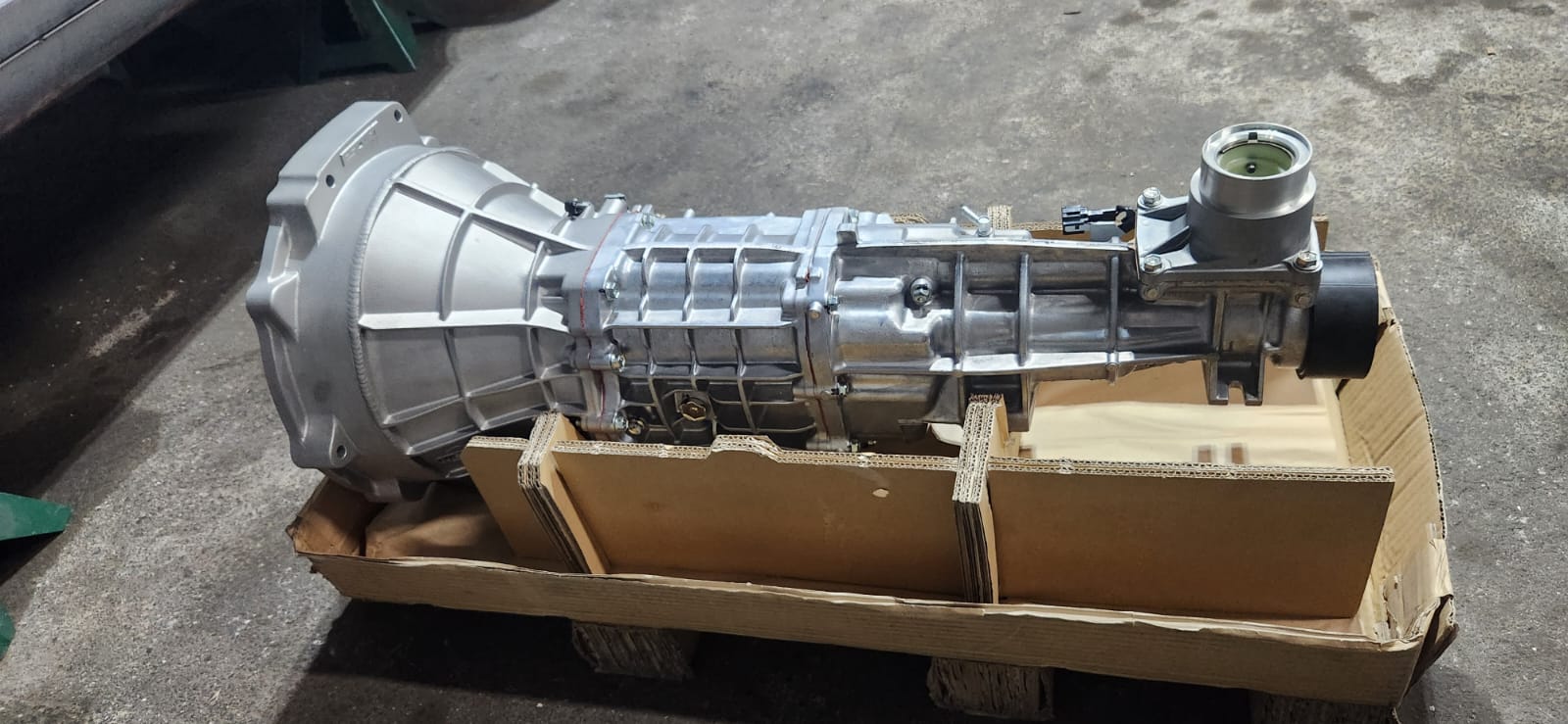

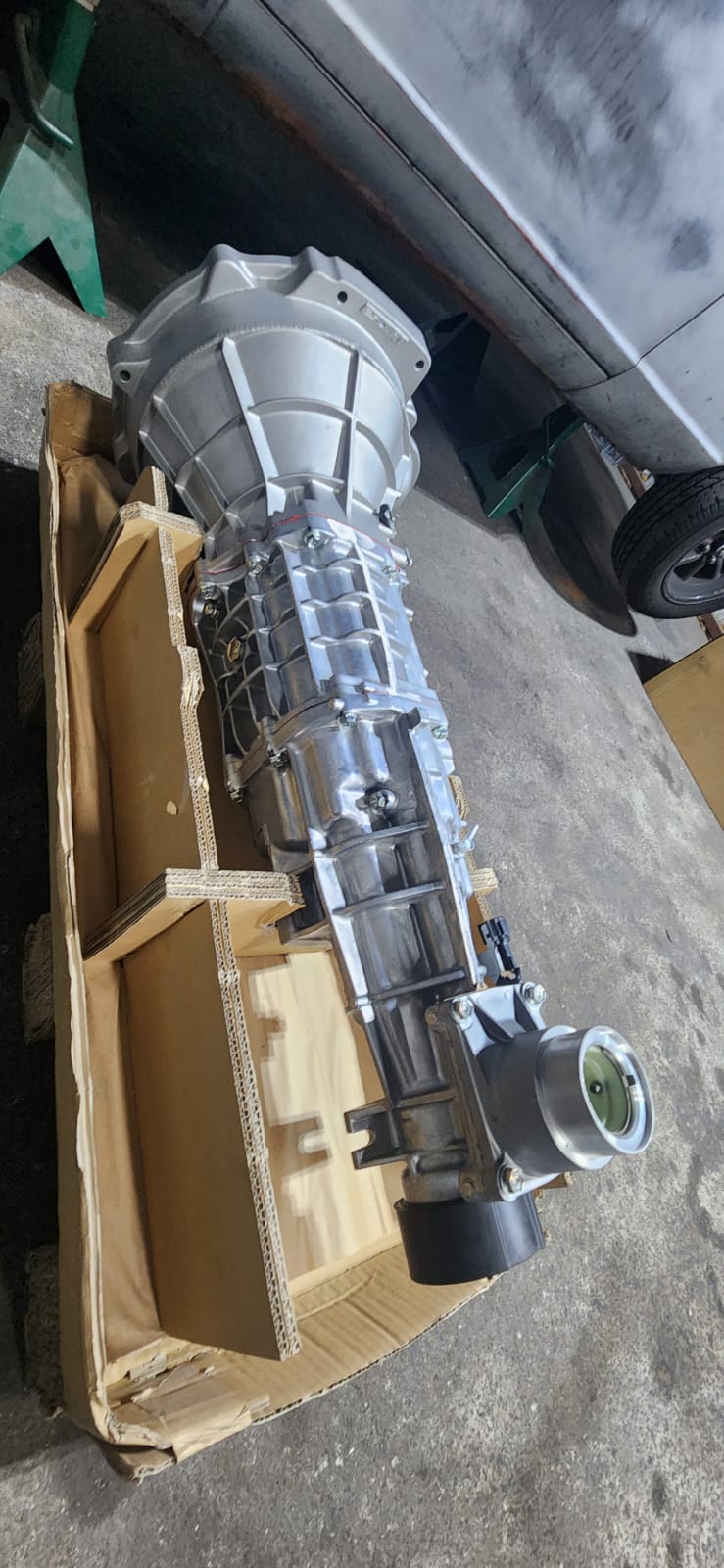

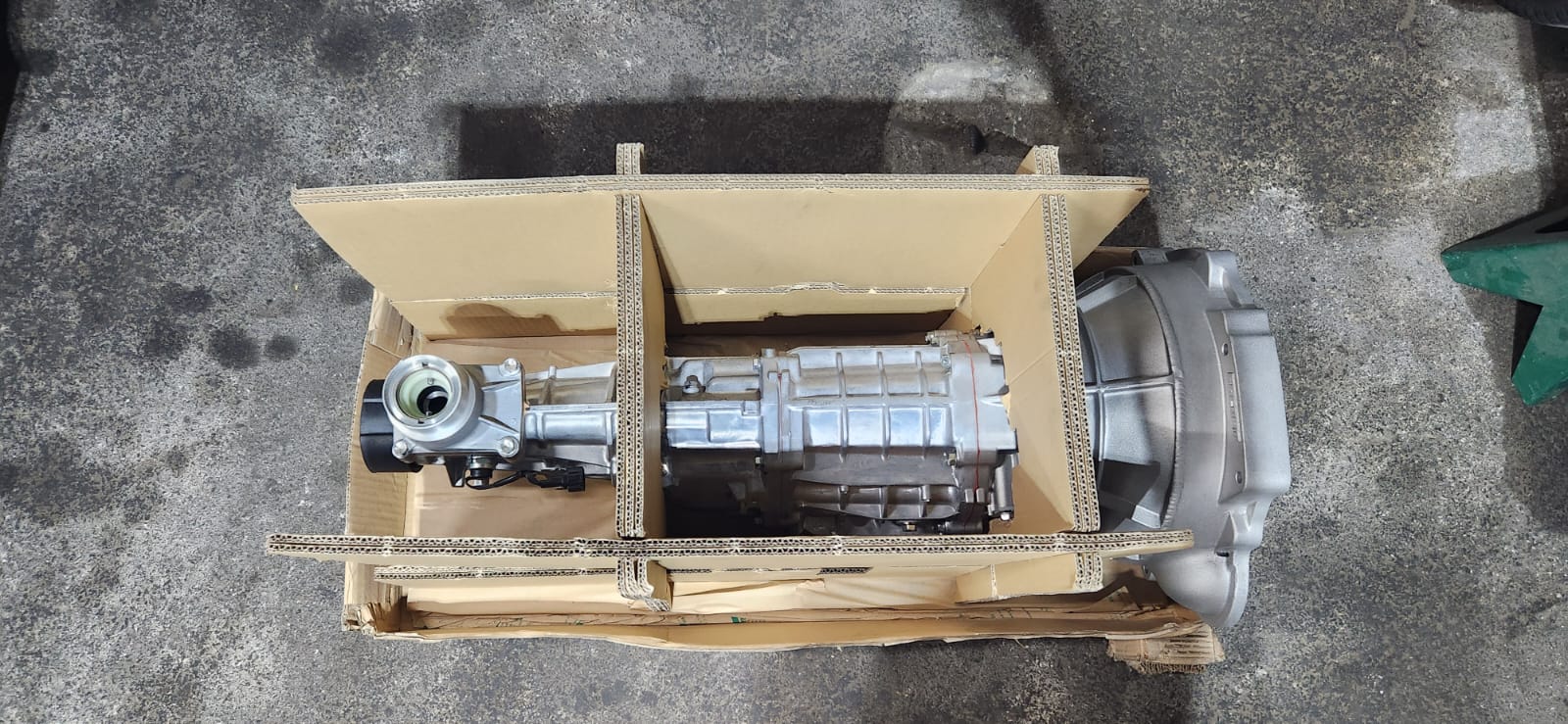

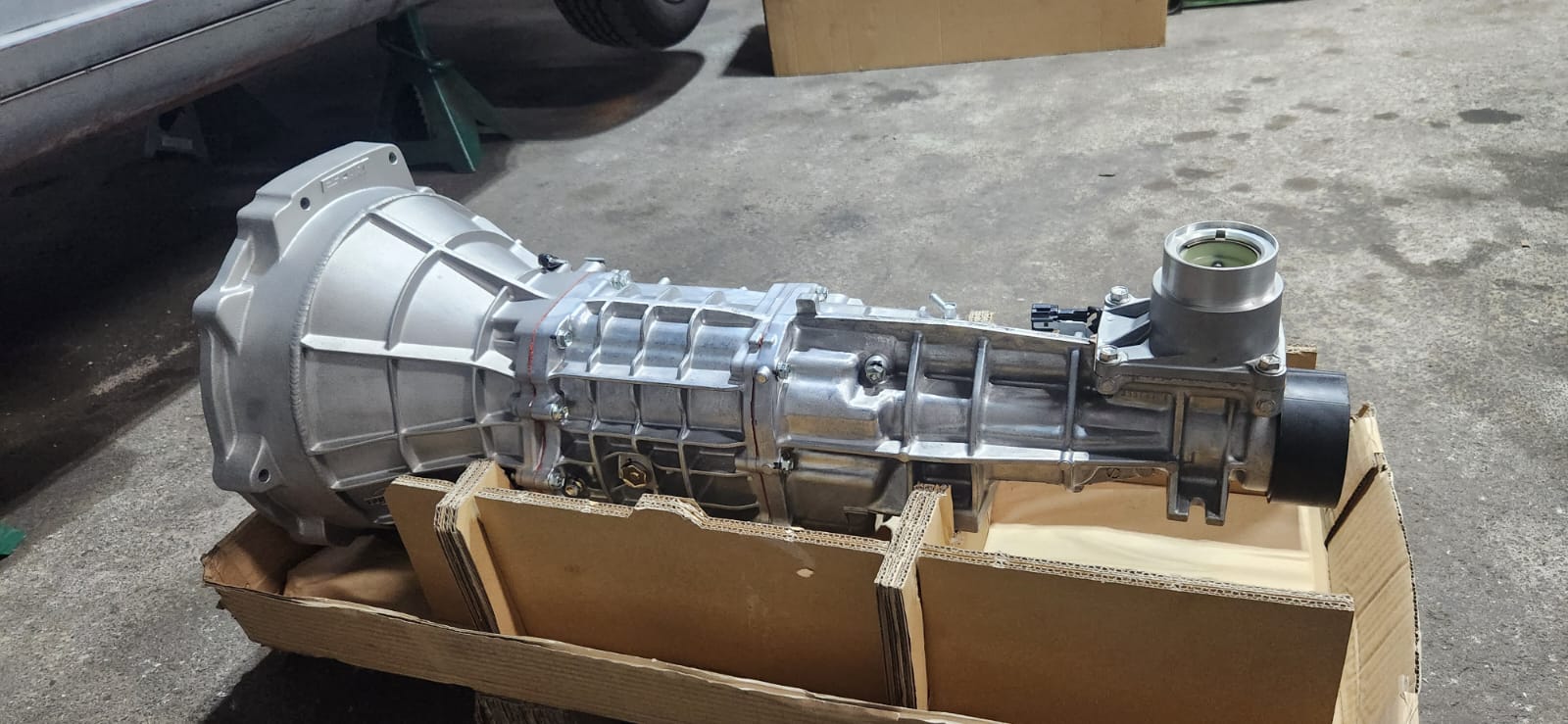

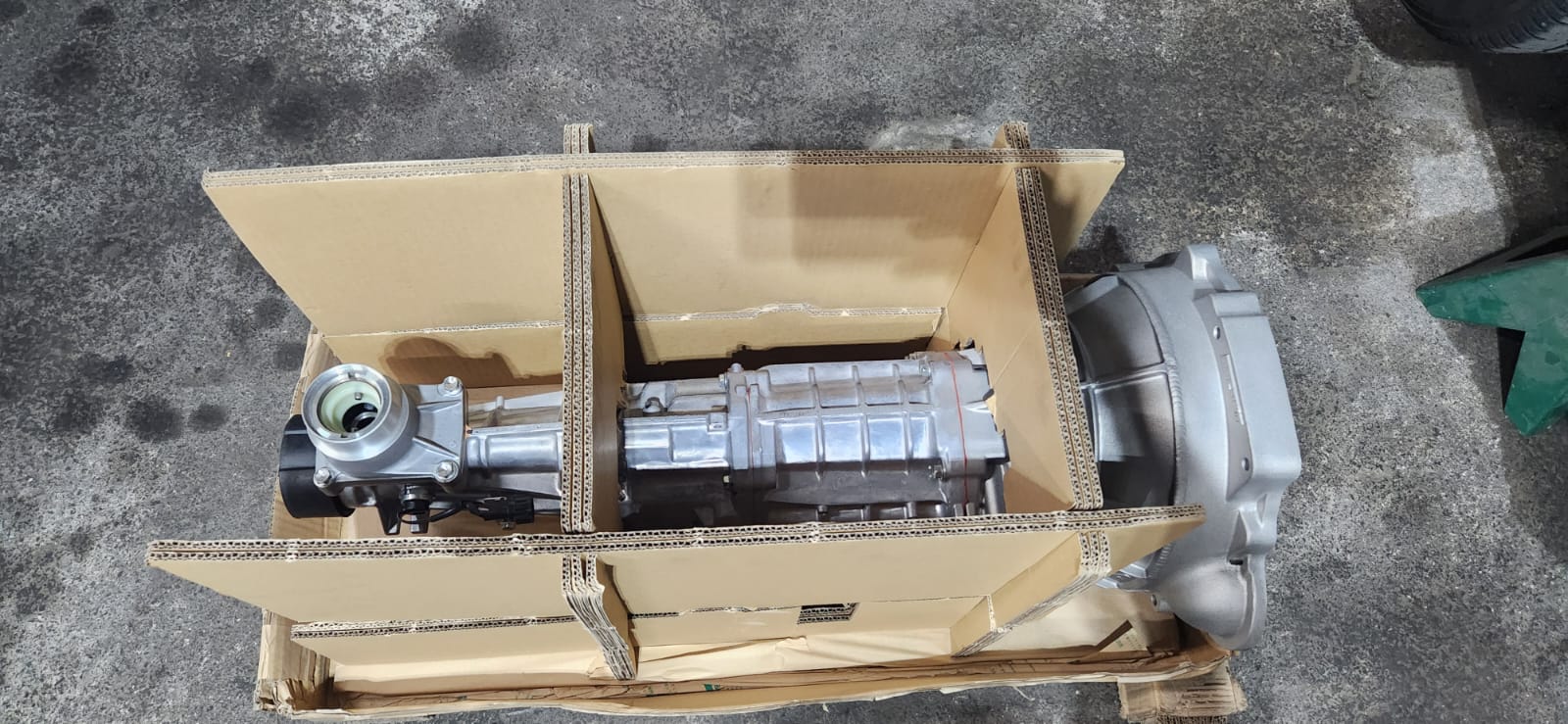

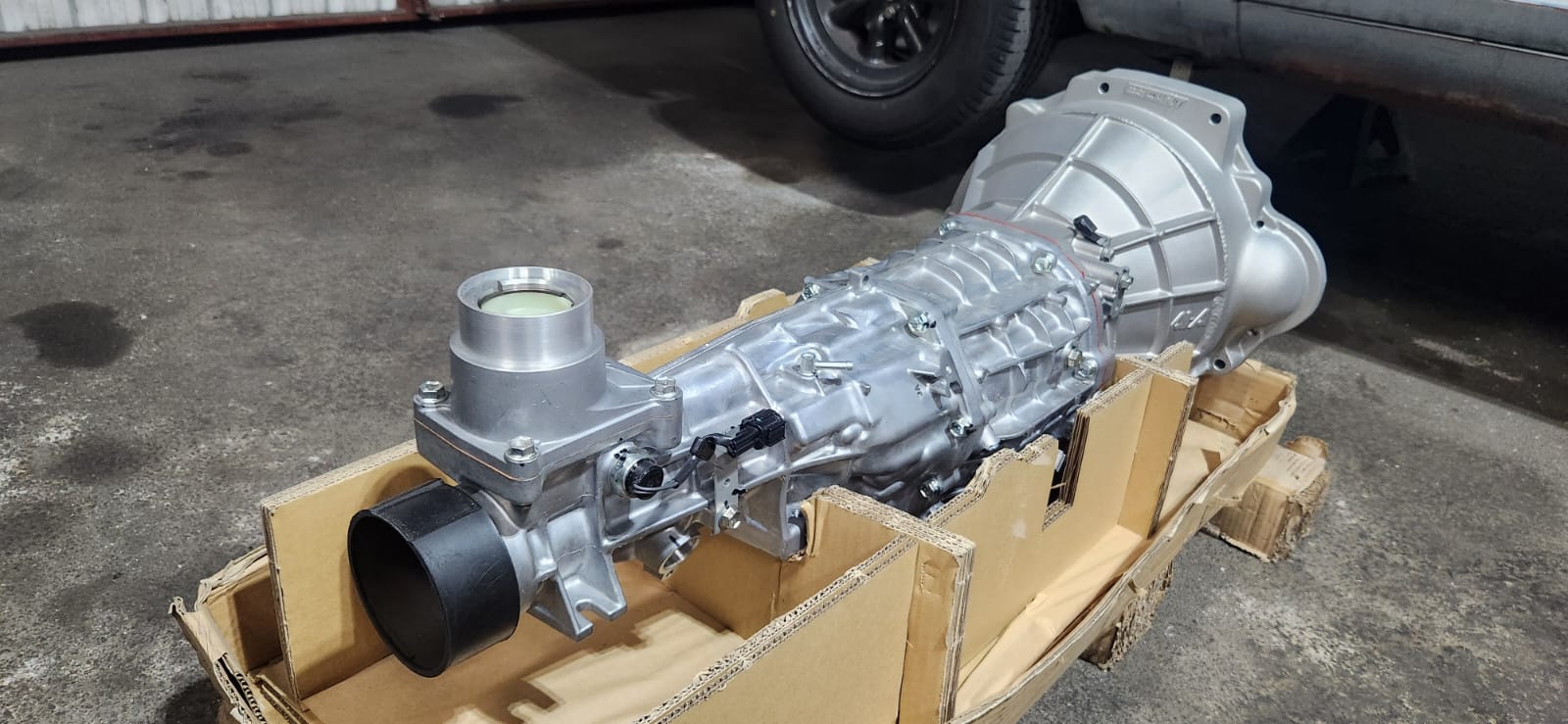

S30Z / Skyline ESCORT Nismo 6-Speed Transmission — Japan Import (NOS)

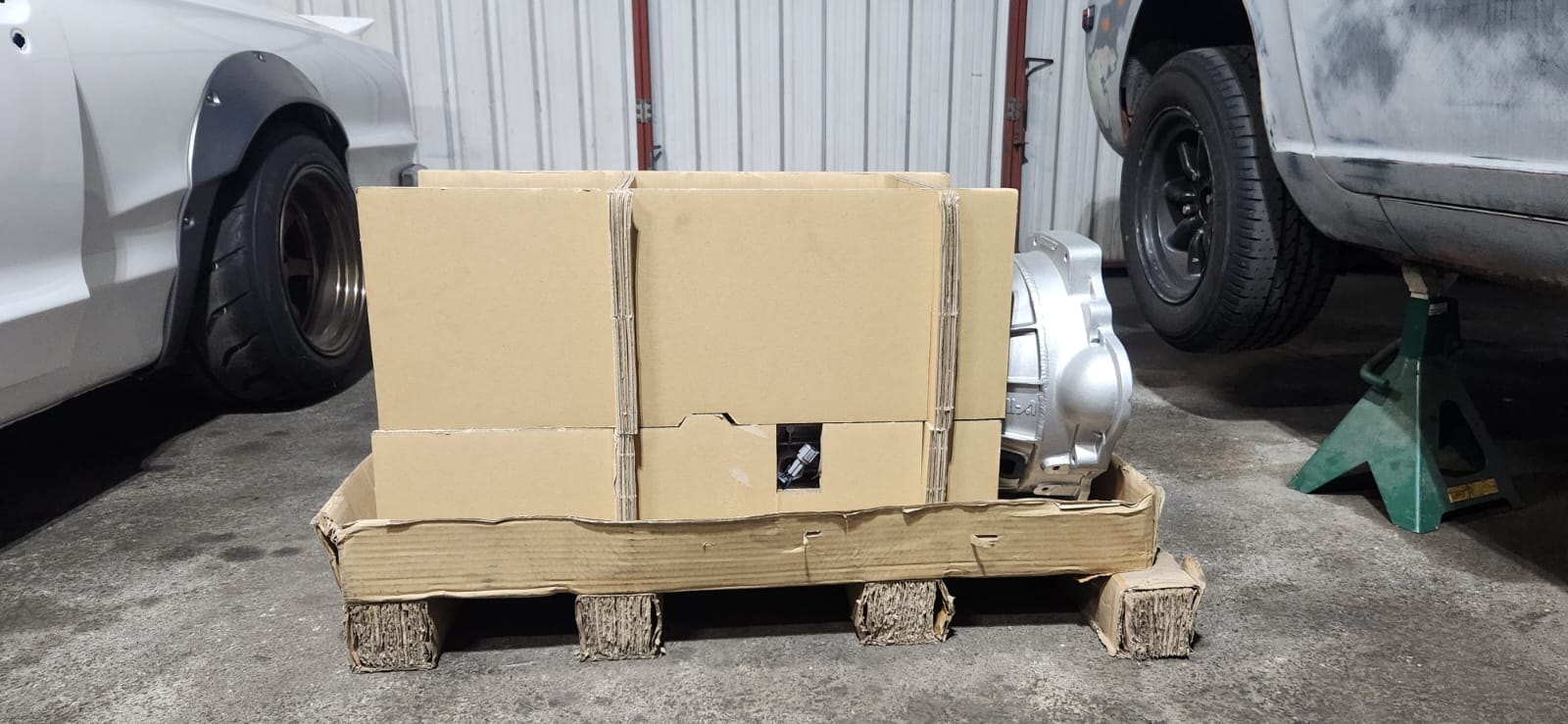

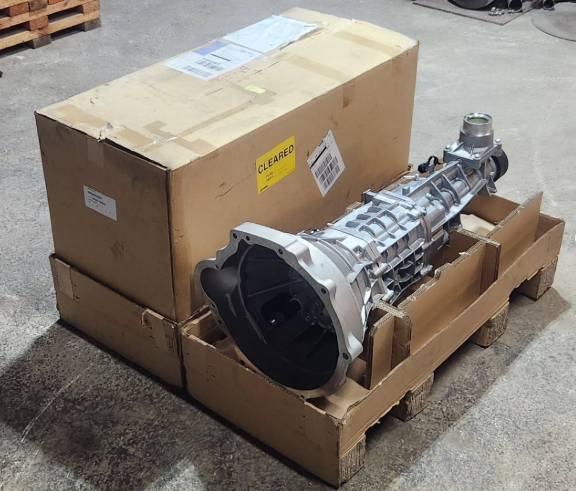

This is a NOS (New Old Stock) Nismo 6-speed transmission sourced directly from Japan — purchased personally from the legendary racing team ESCORT. This isn’t a conversion kit or an adapter plate hack. ESCORT did the full R&D to make this transmission bolt directly into your S30Z or Hakosuka (C10 Skyline) with zero chassis modification required.

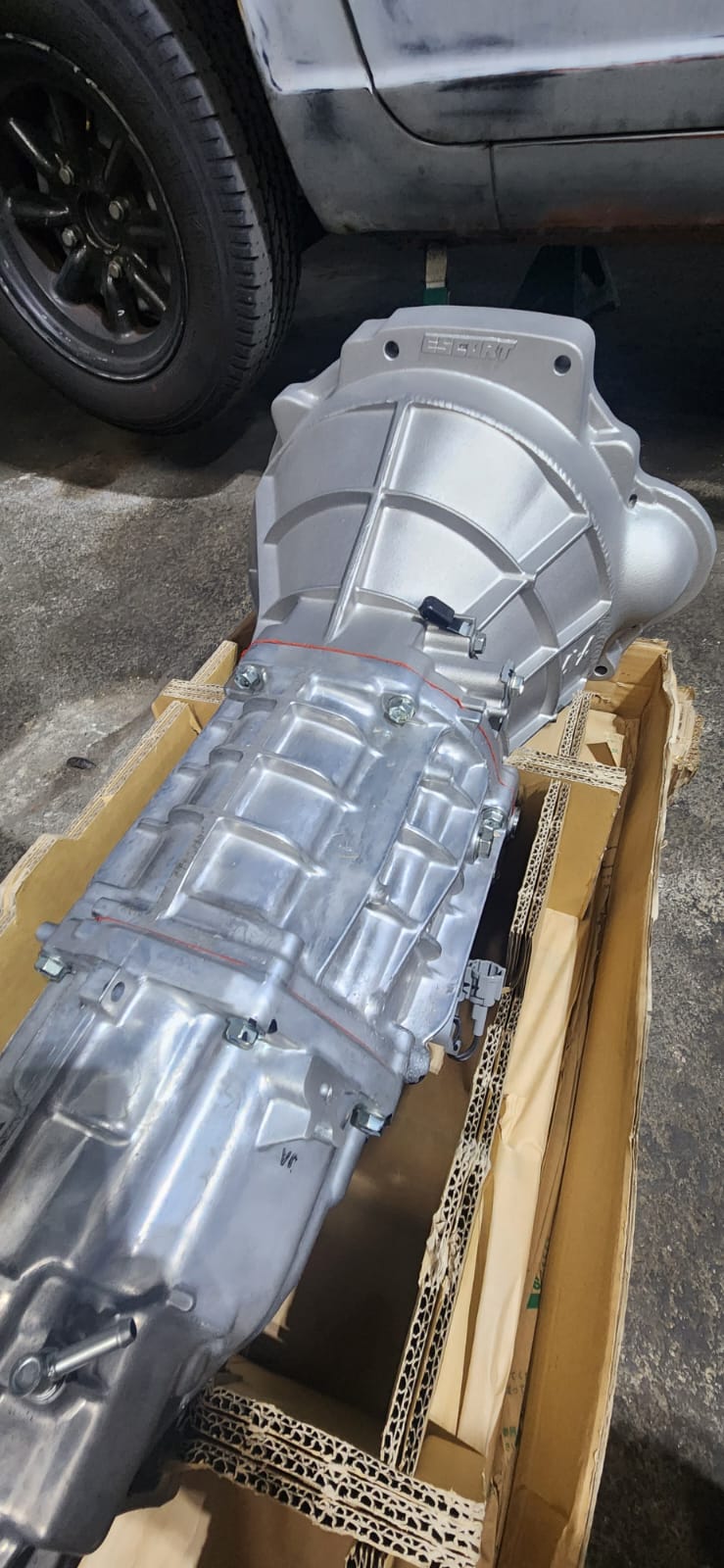

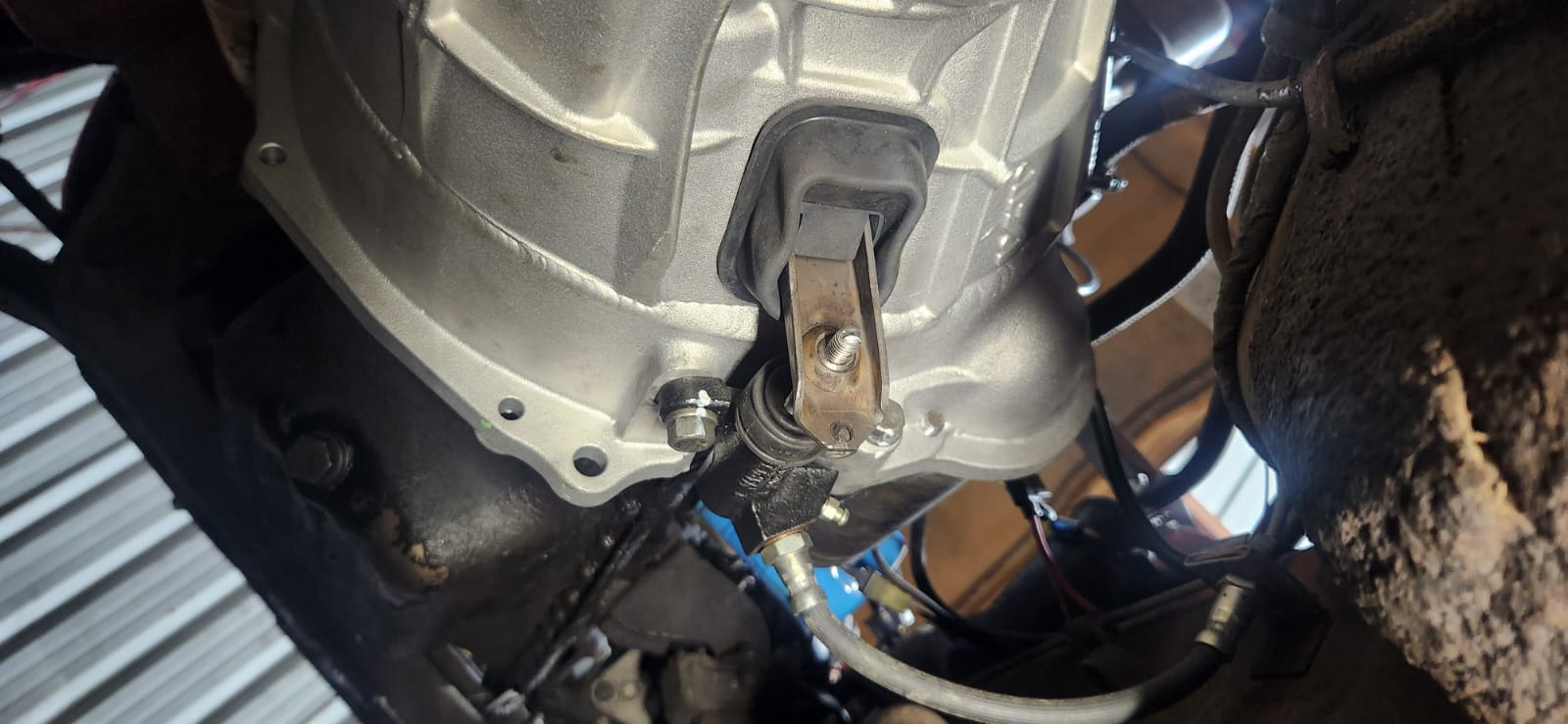

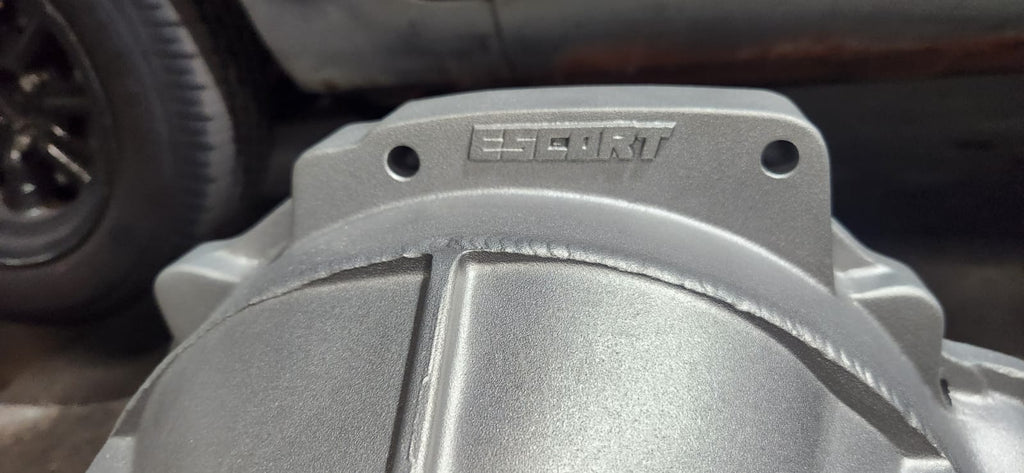

The engineering behind this conversion is serious work. ESCORT sand-cast a custom bellhousing, then precision-machined both the Nismo and cast housings to a pressed fit. After TIG welding them together, the bellhousing was shot-peened before final reassembly — a process that improves fatigue strength and surface integrity. The result is a 6-speed transmission that bolts cleanly to your L-Series engine.

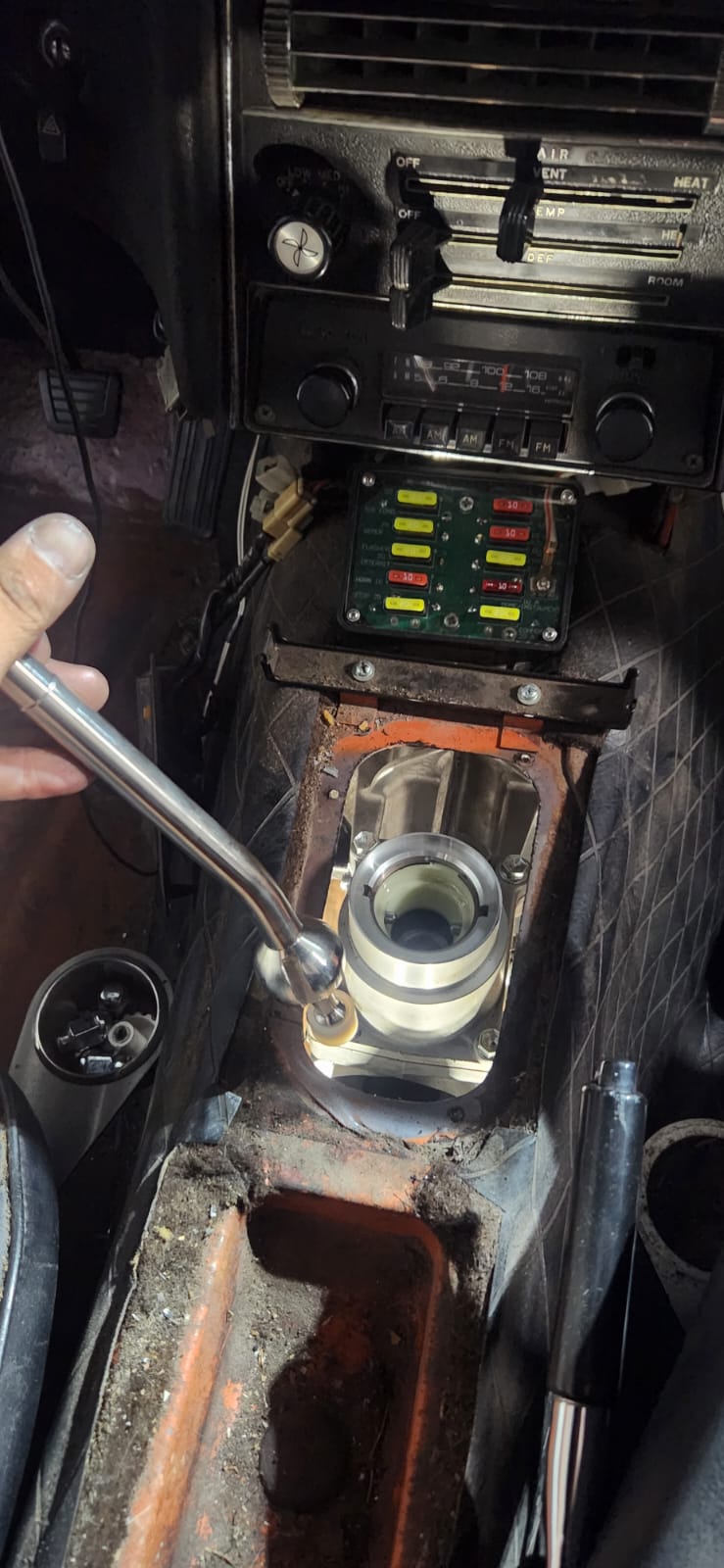

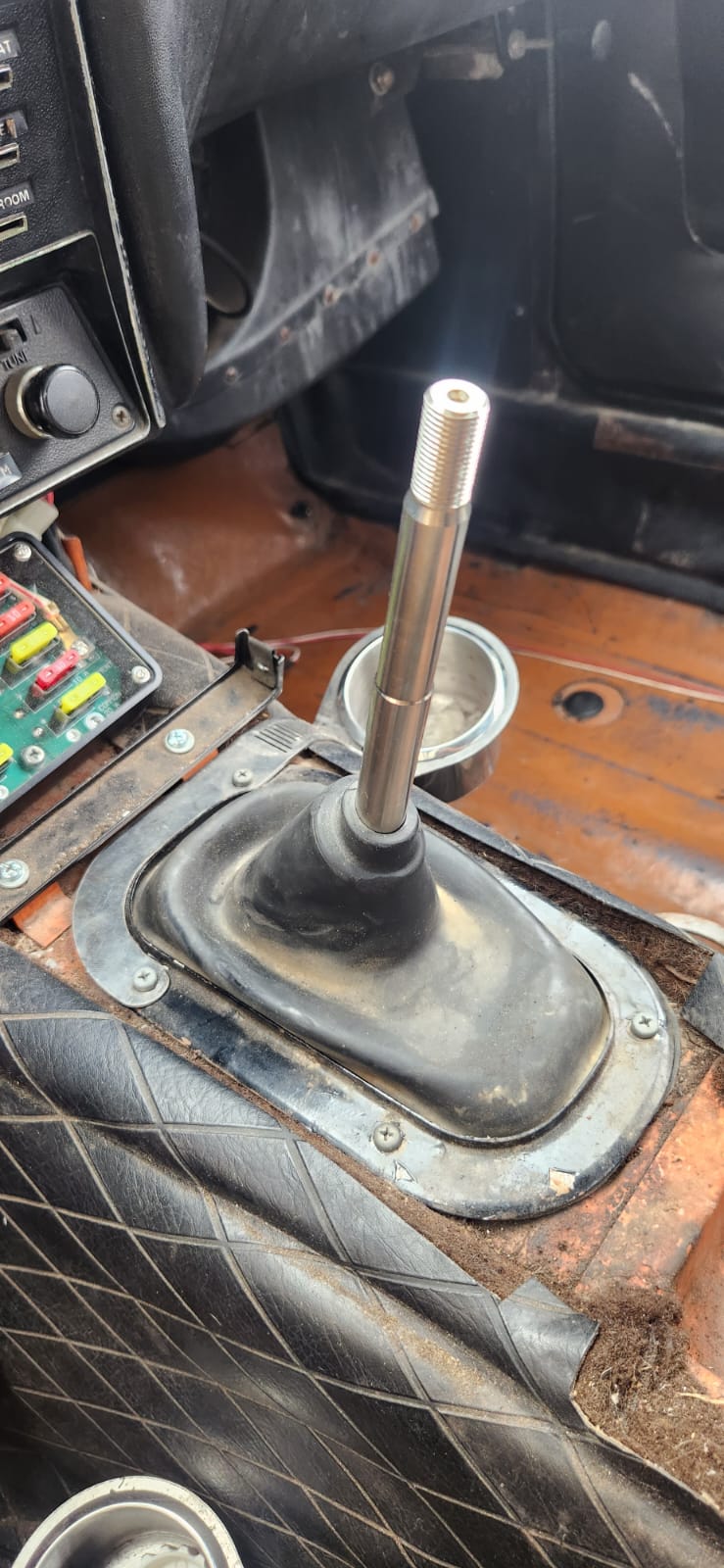

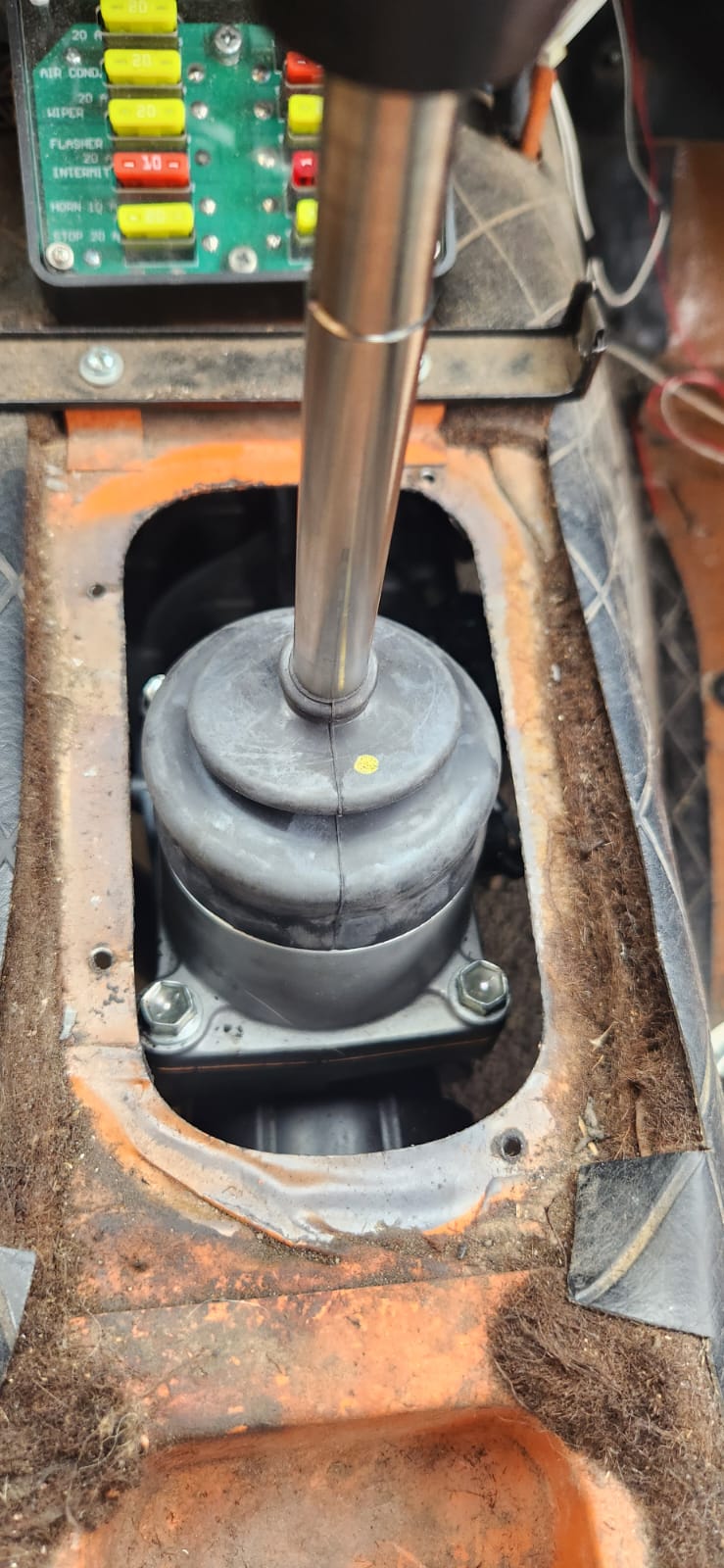

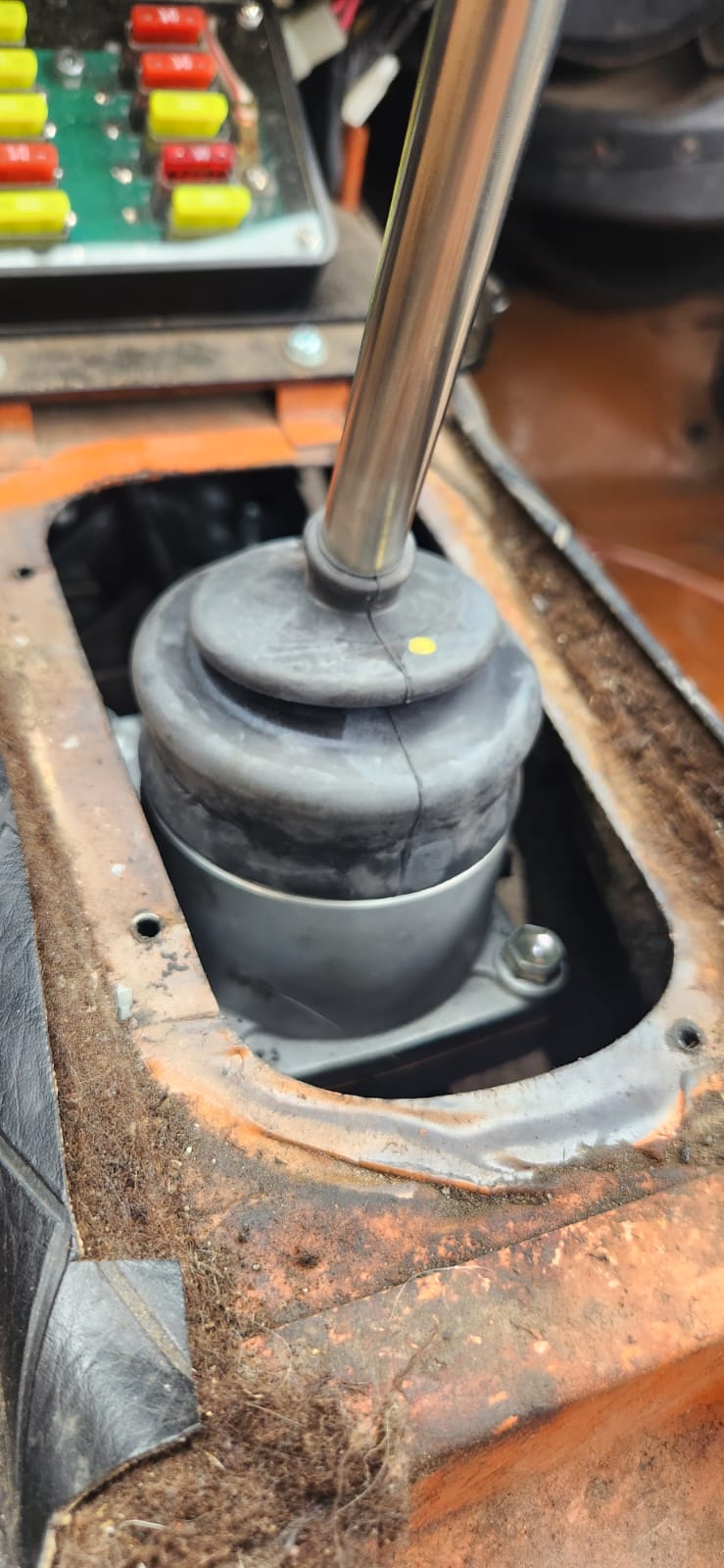

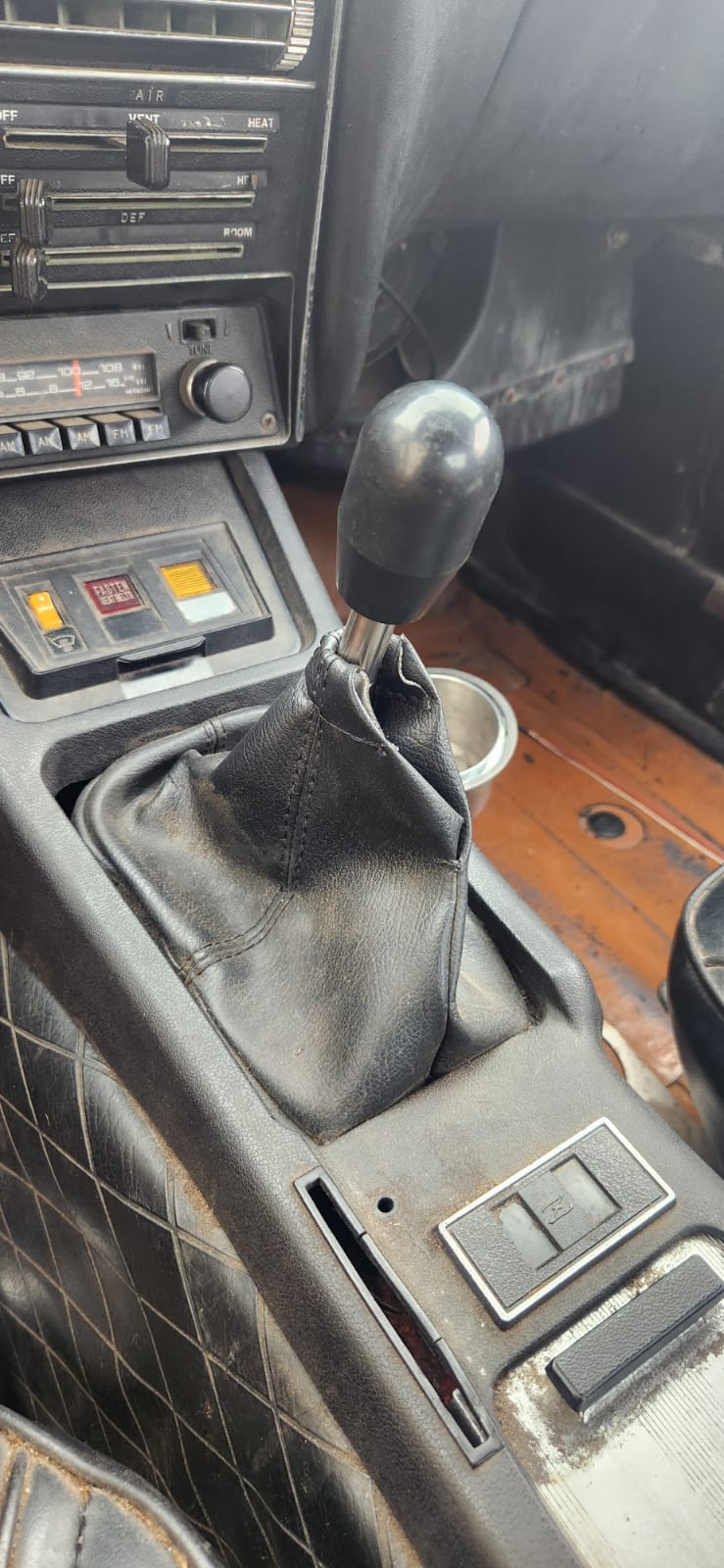

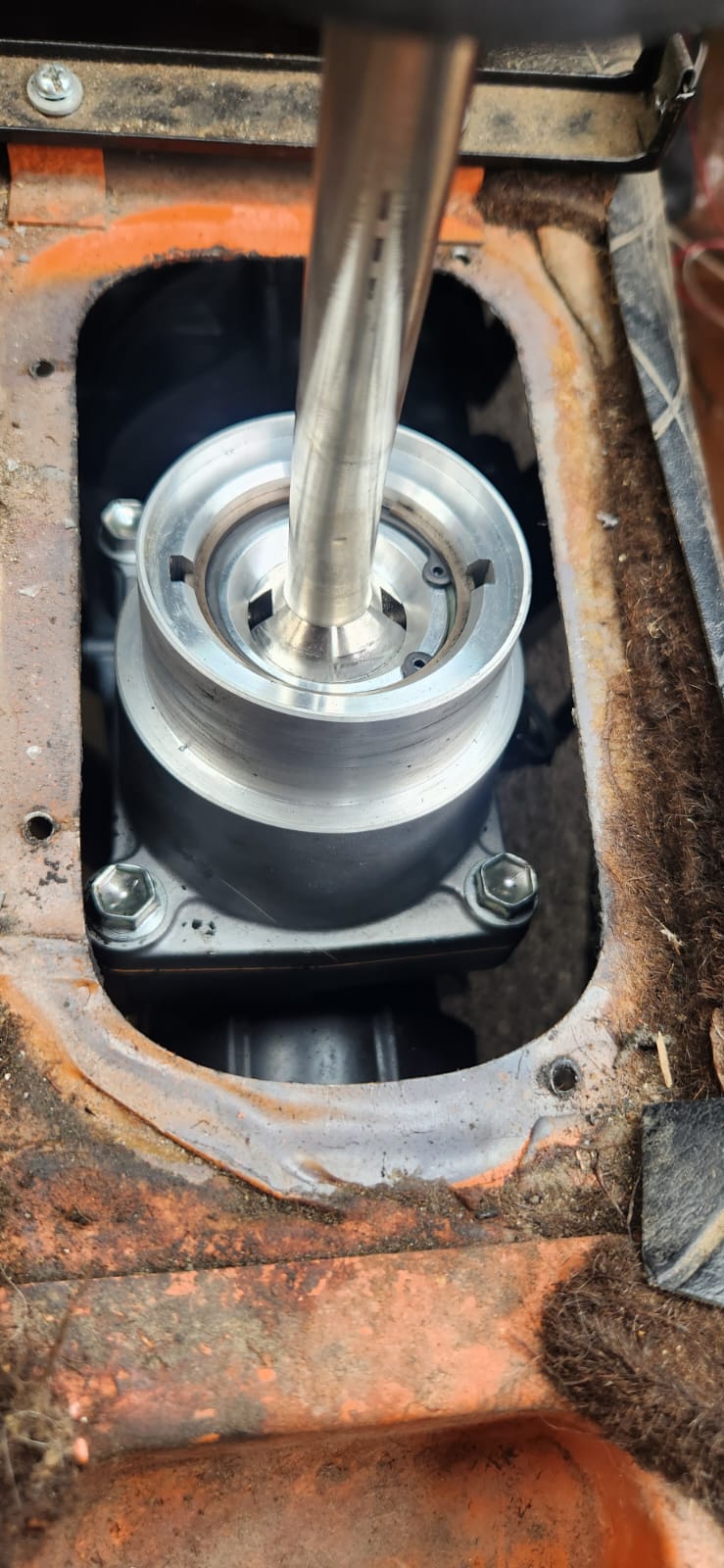

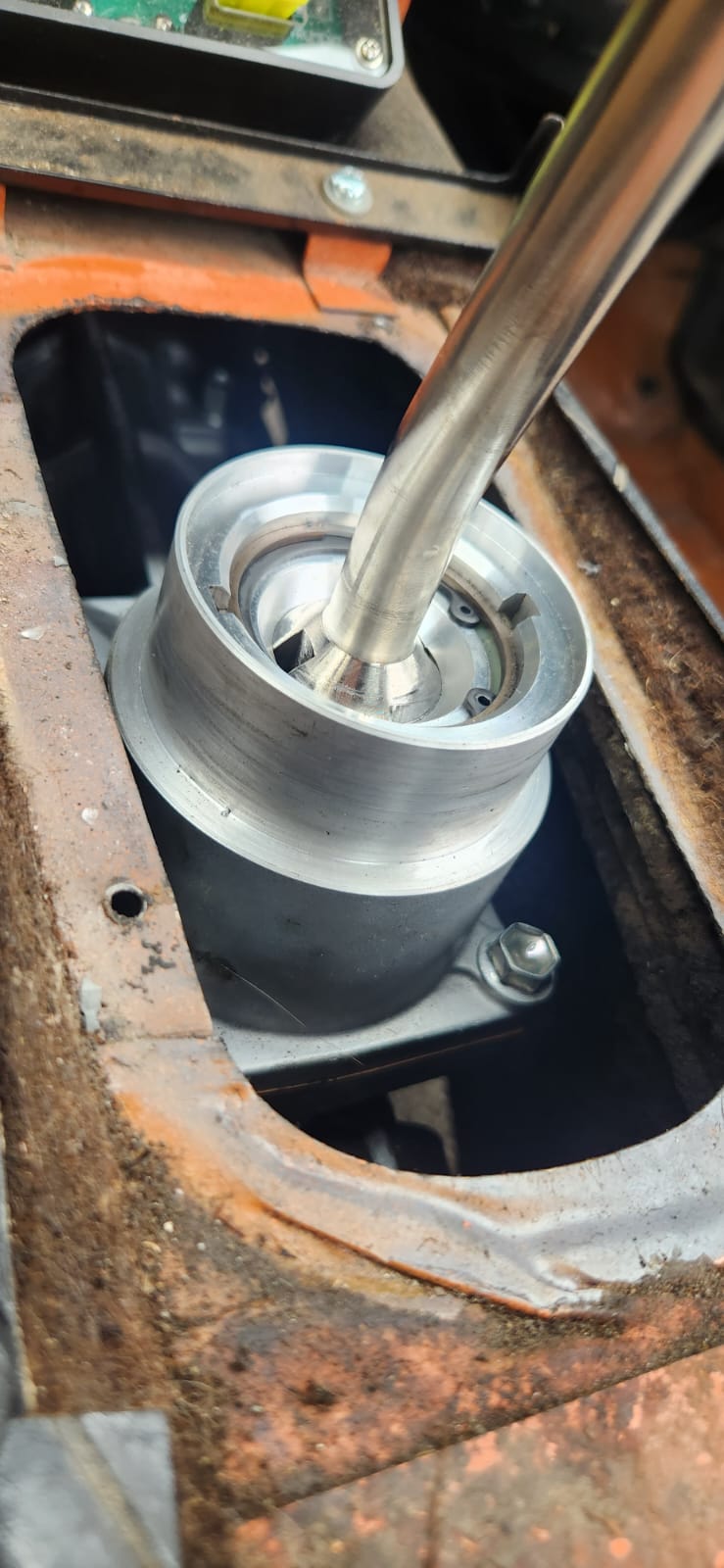

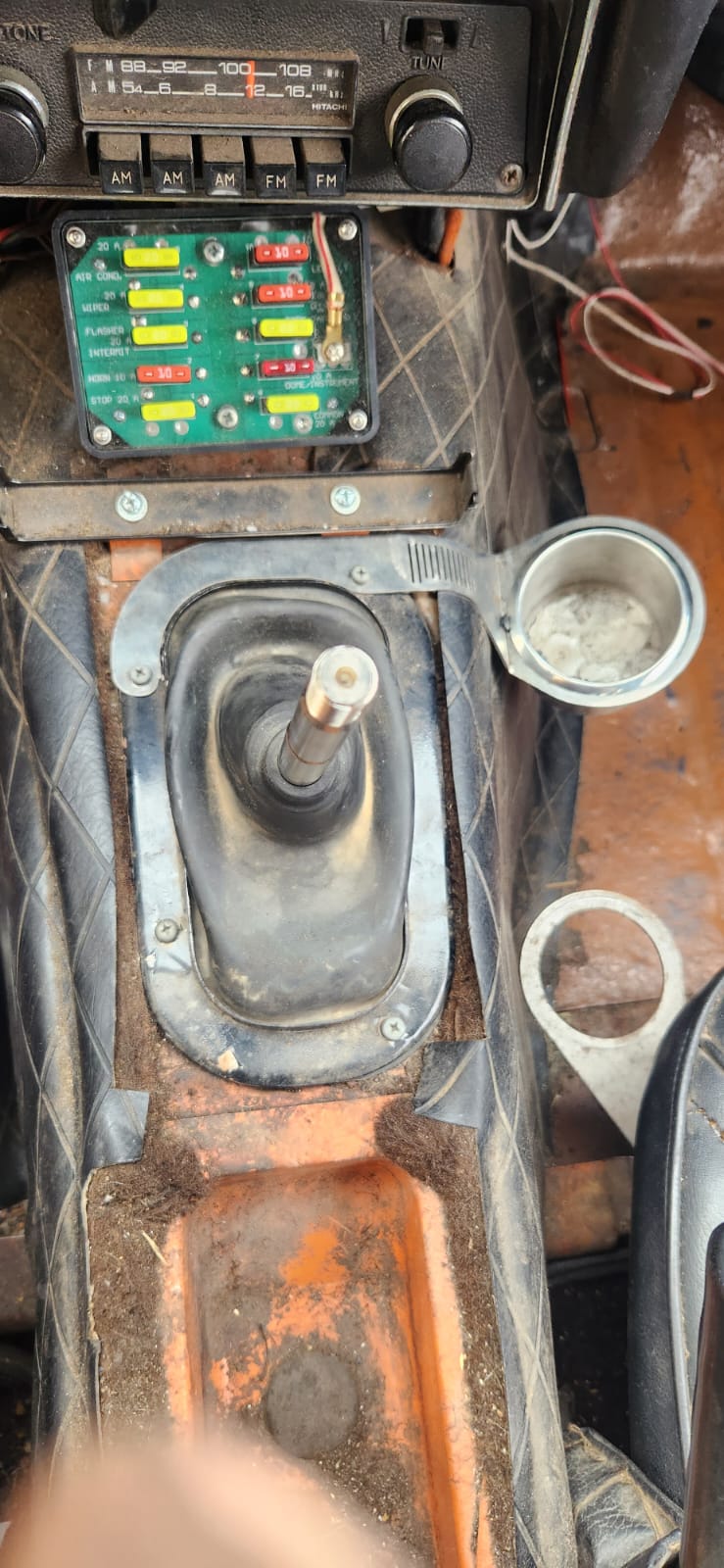

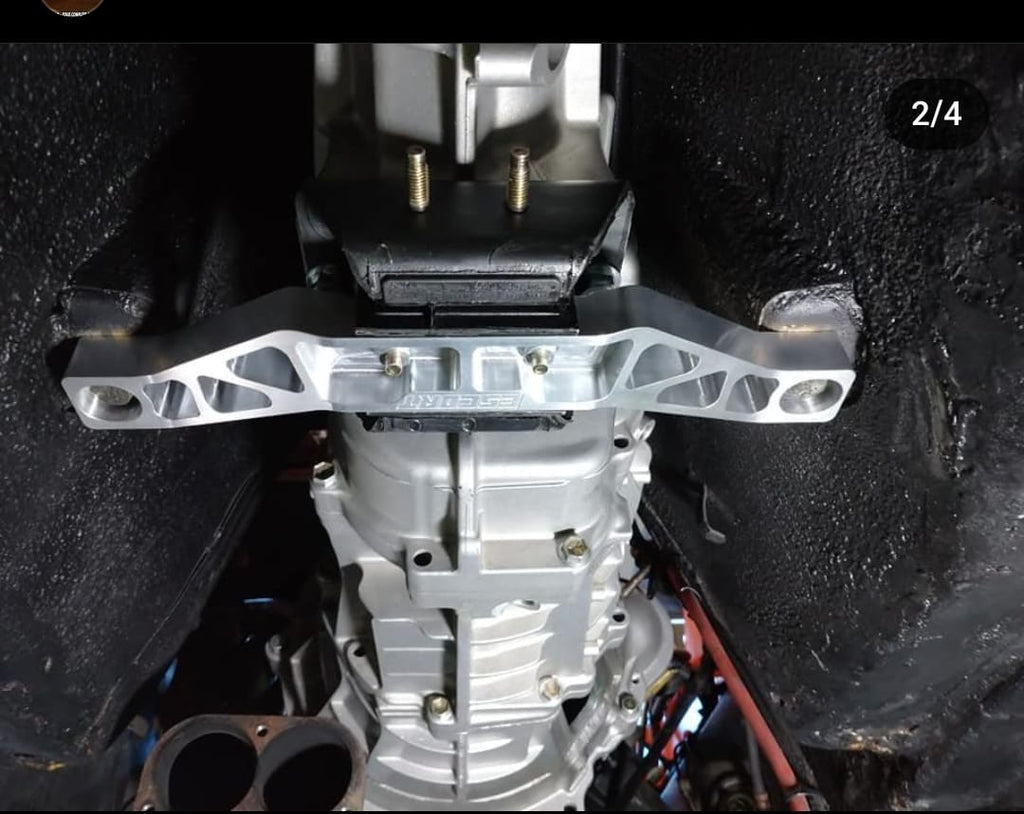

Additional machining operations were completed on the case and shifter housing to ensure the shifter position works with the factory S30 or Hakosuka trans tunnel. No tunnel modification required. The kit is complete with a billet aluminum crossmember — this is a true bolt-in affair.

Transmission Specifications

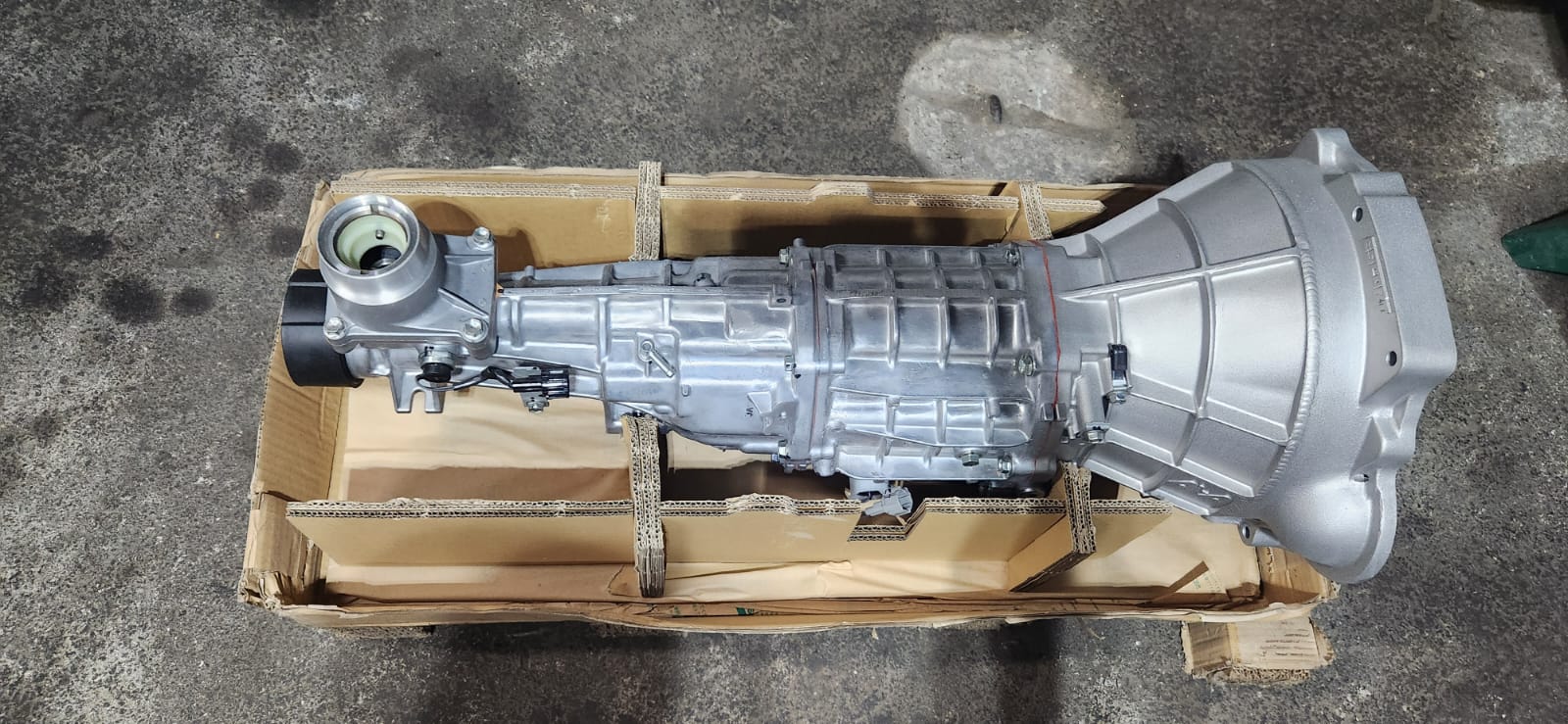

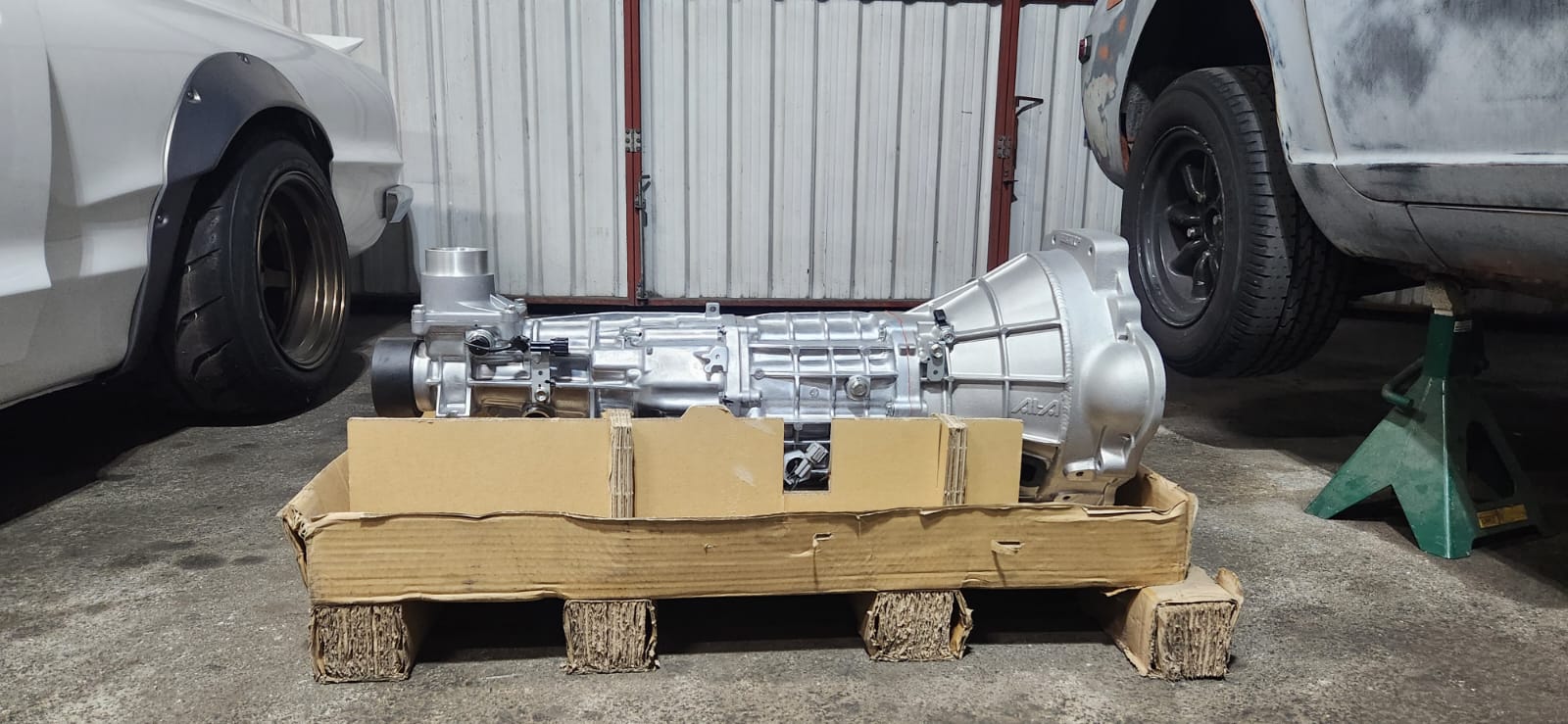

• Based on the Nissan S15 Nismo close-ratio 6-speed
• Strengthened from the factory S15 unit — rated to support 345 bhp
• Close-ratio 1st through 5th gears for canyon carving and track performance
• 6th gear: 0.8624 overdrive — perfect for highway cruising
• 5th gear: 1:1 ratio

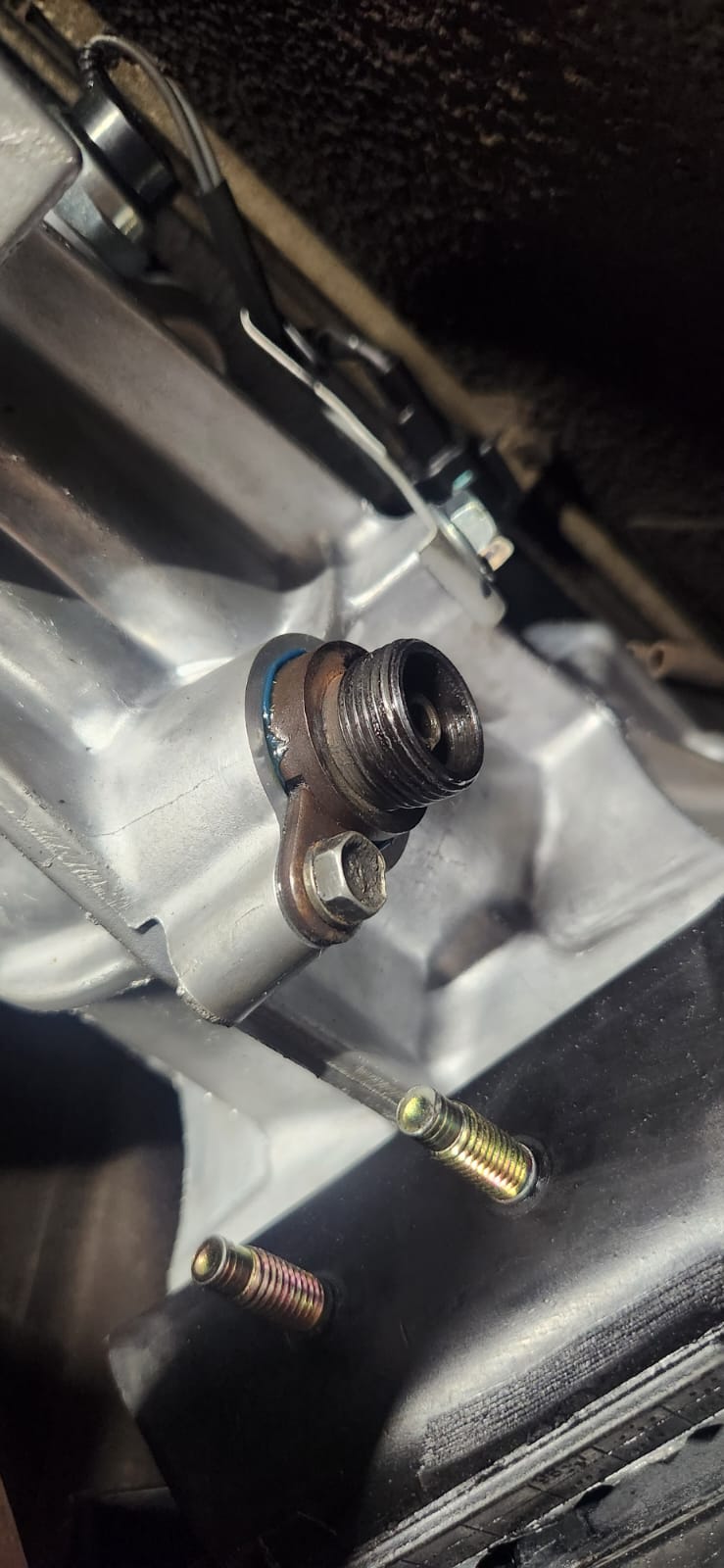

• Retains mechanical speedometer drive — unlike the standard S15 trans, so factory gauges work without modification

Conversion Engineering

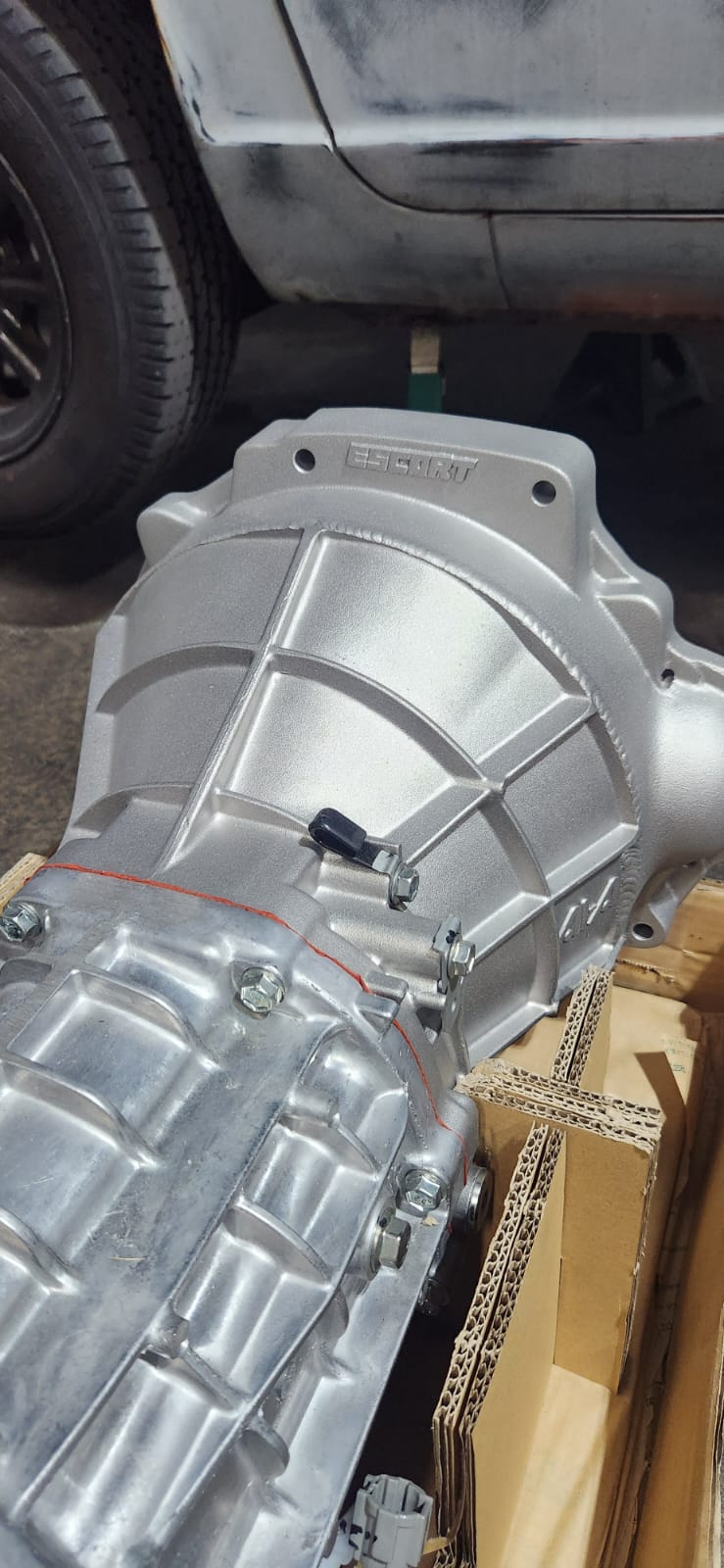

• Sand-cast custom bellhousing machined to pressed fit with Nismo trans case
• TIG welded bellhousing-to-case joint
• Shot-peened bellhousing for improved fatigue strength
• Machined case and shifter housing for correct shifter position — no trans tunnel modification needed

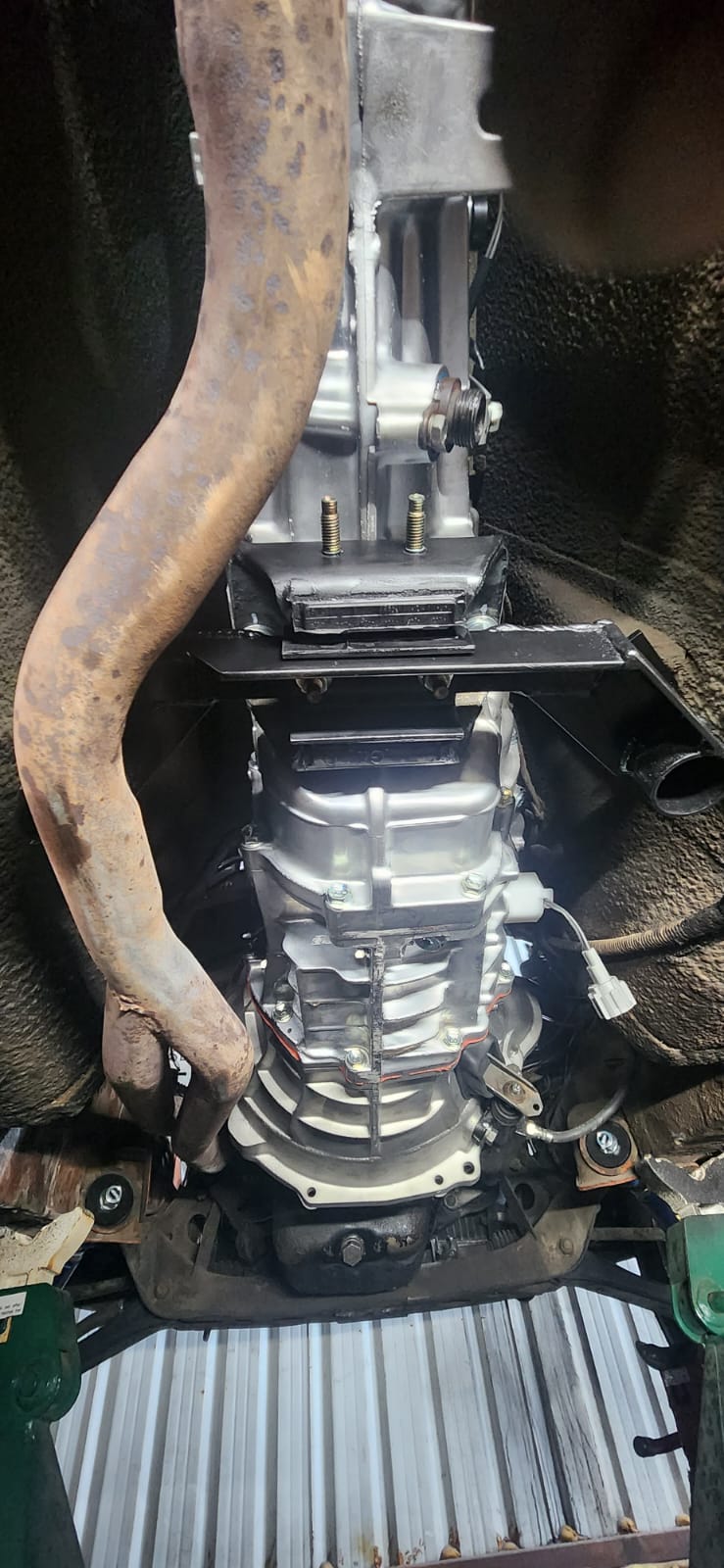

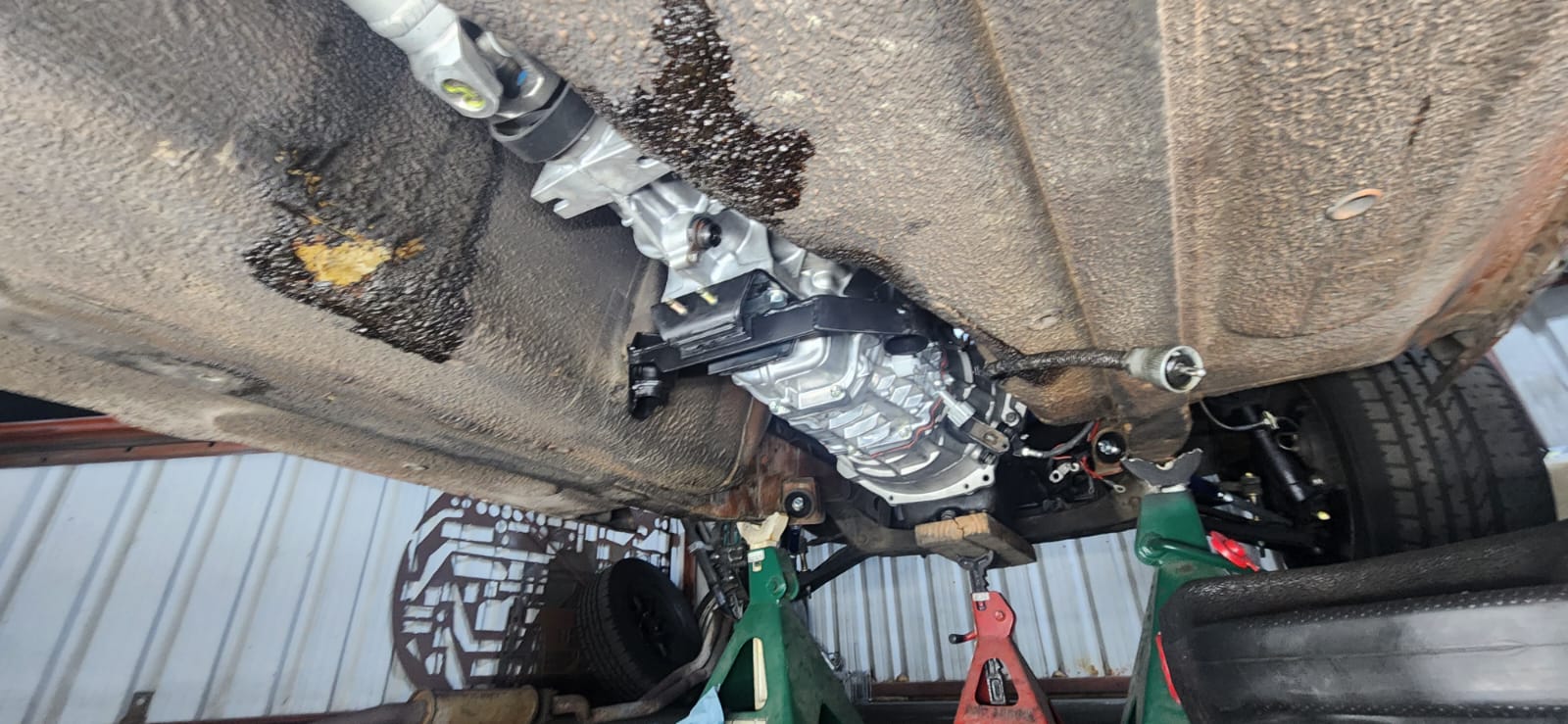

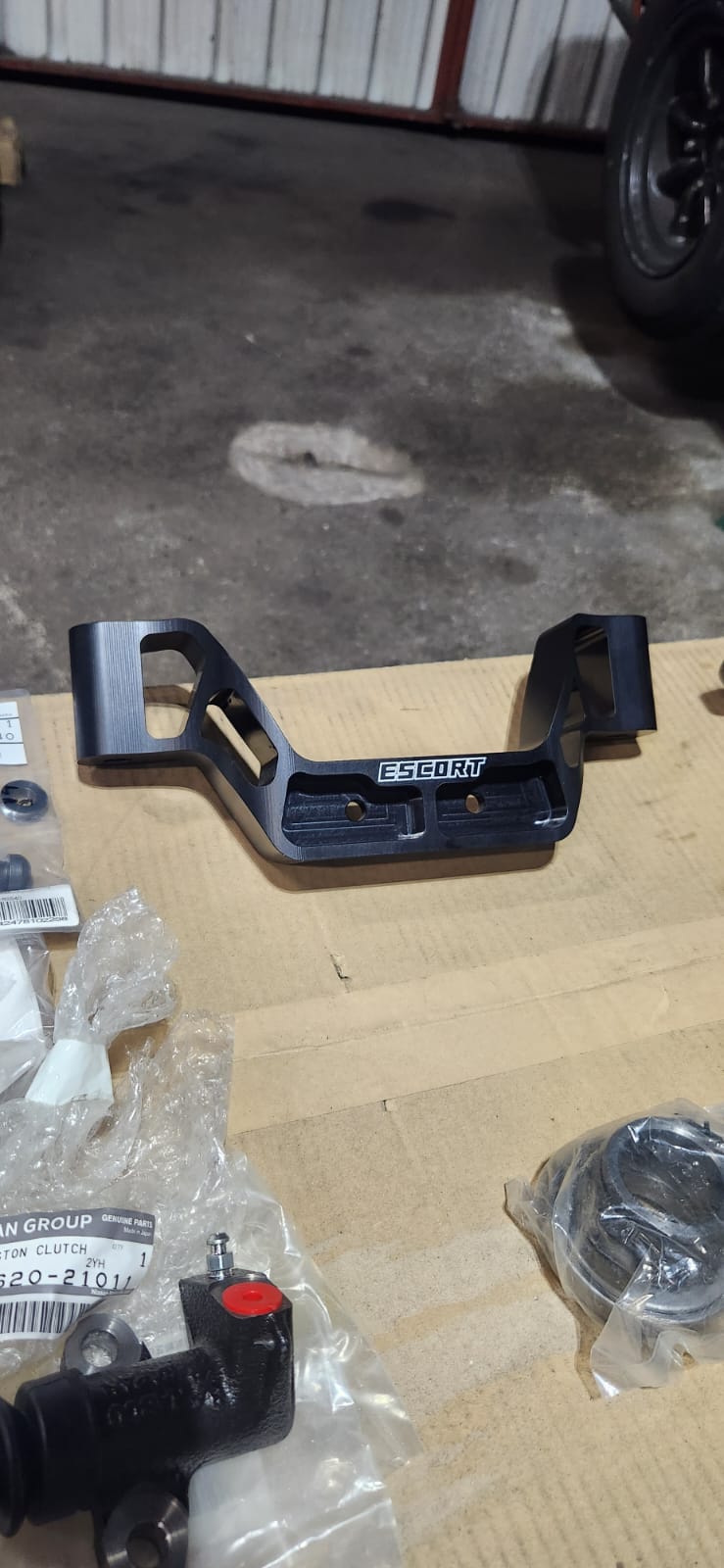

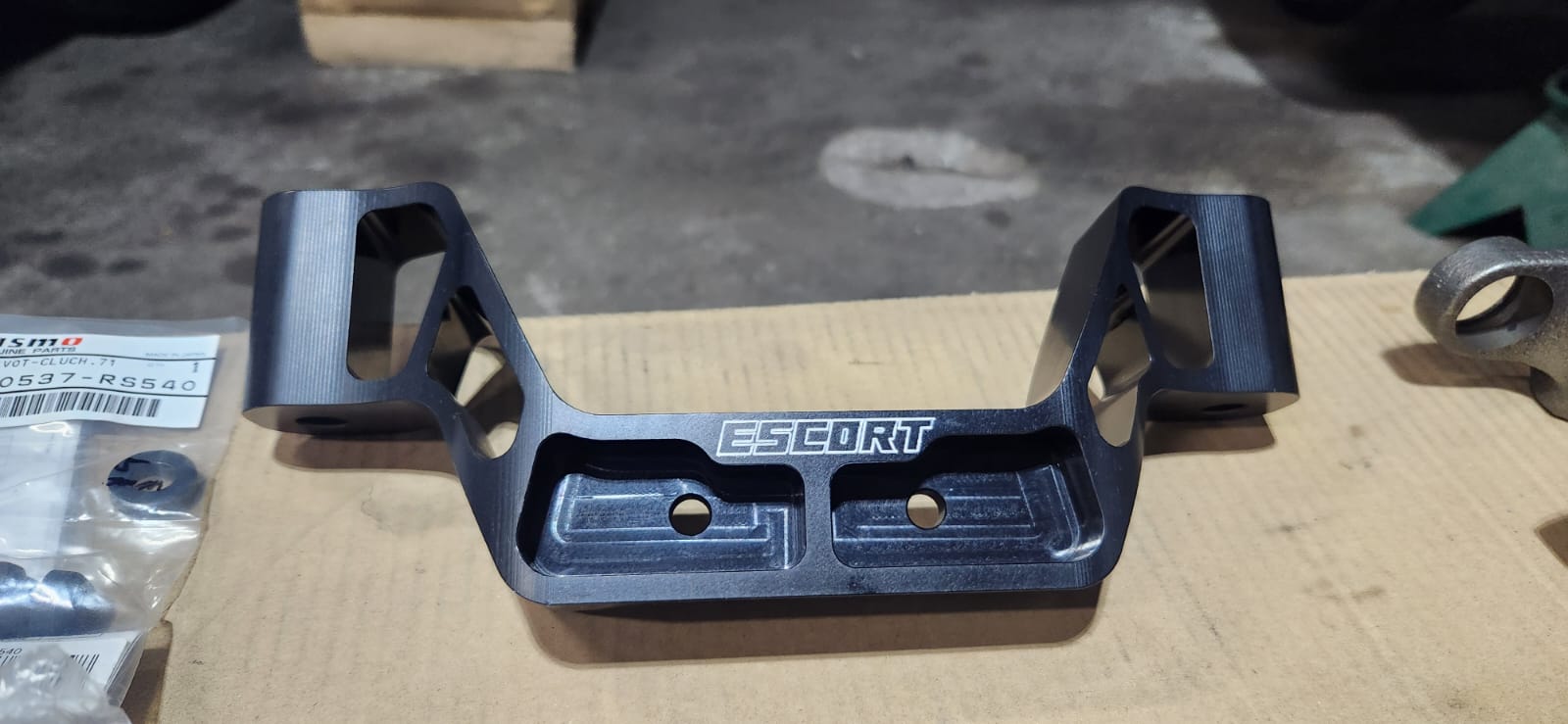

• Includes billet aluminum crossmember
• Bolts directly to L-Series engine

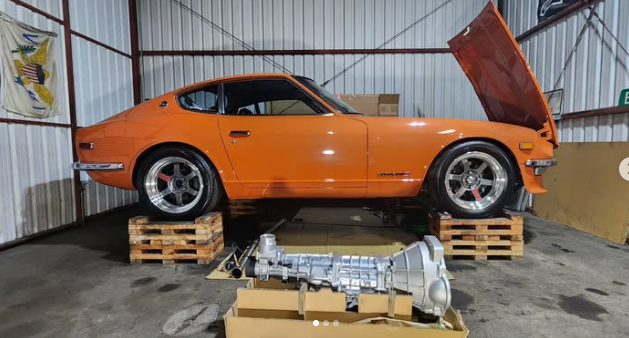

• Compatible with S30Z (240Z, 260Z, 280Z) and Hakosuka (C10 Skyline)

Why This Transmission?

A single overdrive gear for relaxed highway cruising. A close-ratio 1st through 5th for the canyons and the track. Mechanical speedo drive so your factory dash works. And 345 bhp capacity — more than enough headroom for a high-performance L-Series build. This is the transmission that makes an S30 or Hakosuka feel complete.

Interested in ordering one? Reach out to ZSM Custom directly.
